Craftsman CMXECXA02106410 6 Gallon 150 PSI Oil-Free Pancake Air Compressor

The CRAFTSMAN CMXECXA02106410 is designed for users who need a compact electric compressor for light-duty and intermittent compressed-air applications. Its configuration and airflow characteristics make it more appropriate for occasional pneumatic work than for applications requiring sustained high air volume.

The CMXECXA02106410 is intended for applications where the required airflow is relatively modest or where air demand occurs intermittently. CRAFTSMAN and retailers specifically position the compressor for applications such as trim and finish nailing, inflation, blowing and smaller-SCFM air tools.

Compatibility depends on the actual air requirement of the specific tool. The compressor delivers 2.6 SCFM at 90 PSI, so tools requiring substantially more sustained airflow can exceed the compressor's available output.

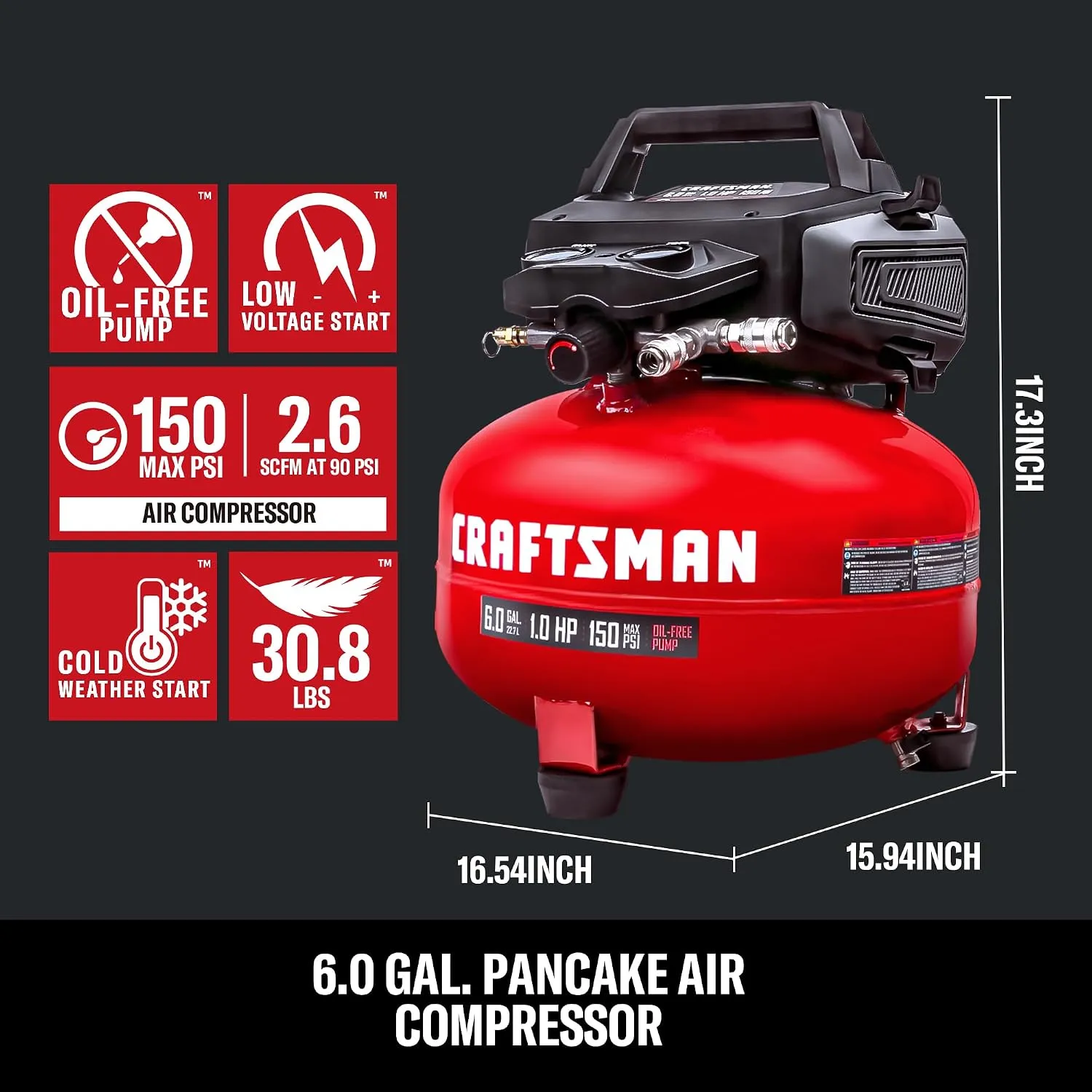

The CMXECXA02106410 is a portable pancake-style electric air compressor with a single-stage, oil-free pump and universal motor. Its pancake configuration places the air tank in a compact horizontal form factor designed for portability.

The compressor uses an oil-free reciprocating compressor pump. An oil-free design eliminates the need for routine compressor-oil changes associated with oil-lubricated pumps.

The available specifications identify the pump as oil-free and single-stage. They do not provide enough reliable information to classify the drive arrangement as belt-drive or direct-drive, so that distinction should not be added to the page without stronger source evidence.

The pancake configuration keeps the compressor relatively compact while the integrated carry handle allows it to be moved between work locations. The design is therefore oriented toward portable, occasional-use applications rather than a stationary high-capacity installation.

The CMXECXA02106410 delivers 2.6 SCFM at 90 PSI and can operate at a maximum pressure of 150 PSI. It is also listed at 2.5 SCFM at 100 PSI.

The airflow figure is important because it describes the rate at which the compressor can supply air at a specified pressure. The 2.6 SCFM @ 90 PSI rating represents a relatively modest airflow output, which makes the compressor better suited to intermittent air demand than to applications requiring sustained high airflow.

The compressor has a 6-gallon tank, which stores compressed air and provides a reserve during periods of air demand. The tank does not increase the compressor's continuous air-production capability; instead, it provides stored air that can temporarily supplement the compressor's output.

When air demand exceeds the compressor's available airflow for an extended period, the compressor may run more frequently while pressure decreases. The practical result depends on the air requirements of the connected tool or equipment.

The CRAFTSMAN CMXECXA02106410 has a published noise rating of approximately 82–85 dB. Its operating sound is clearly noticeable, particularly when the compressor is running frequently or for extended periods.

For intermittent applications such as inflation, nailing, and stapling, the compressor's operating cycle may limit the amount of time spent exposed to the motor noise.

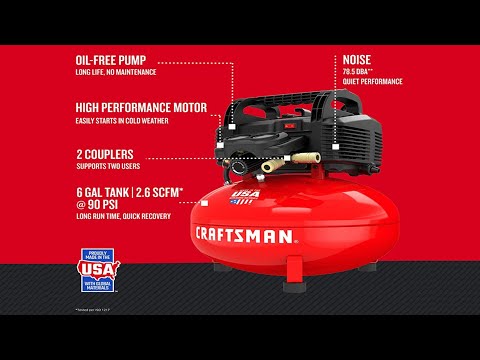

The CMXECXA02106410 includes several features intended to simplify portable use and everyday operation. Published product information identifies rubberized feet, an integrated carry handle, thermal protection, a drain valve, and other operating features.

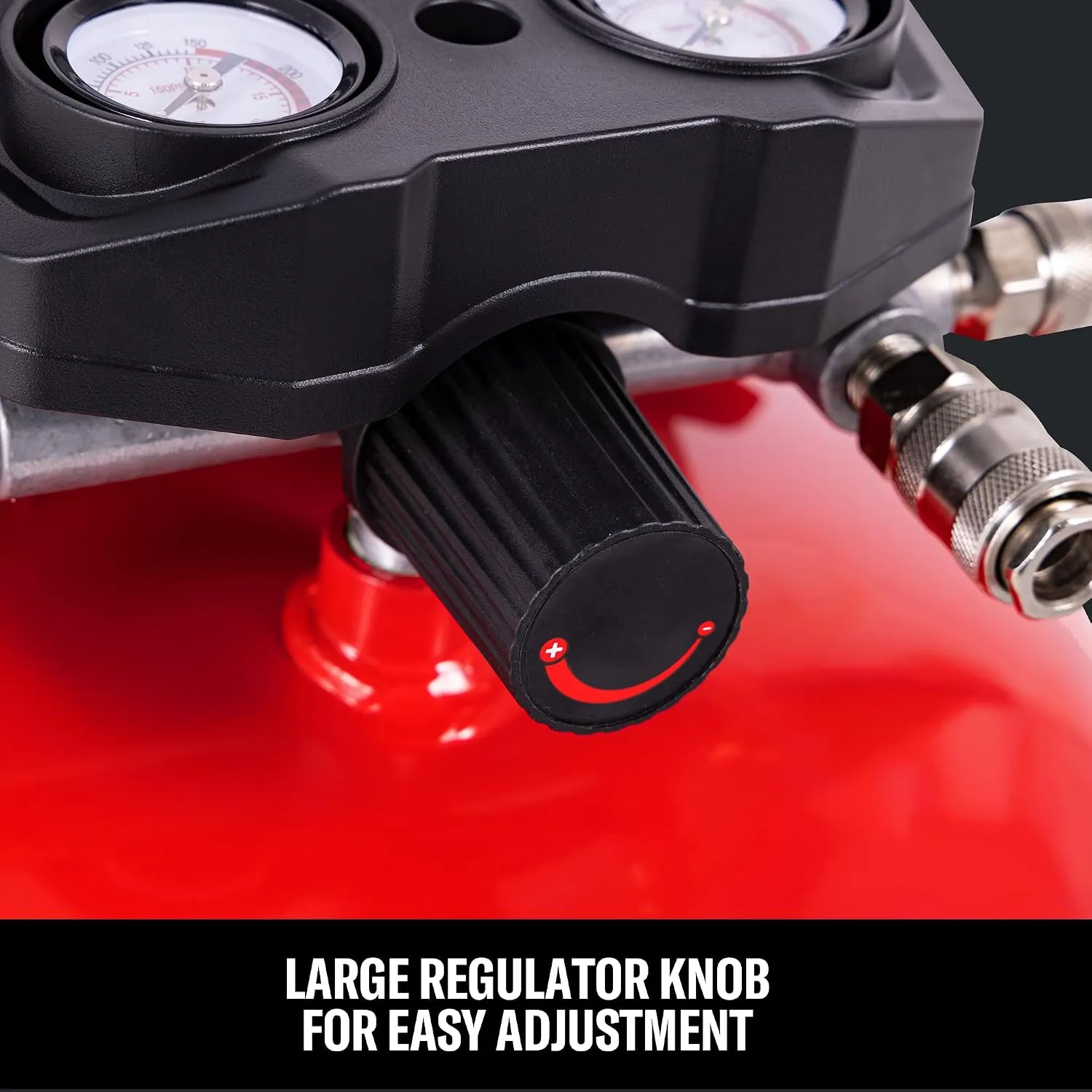

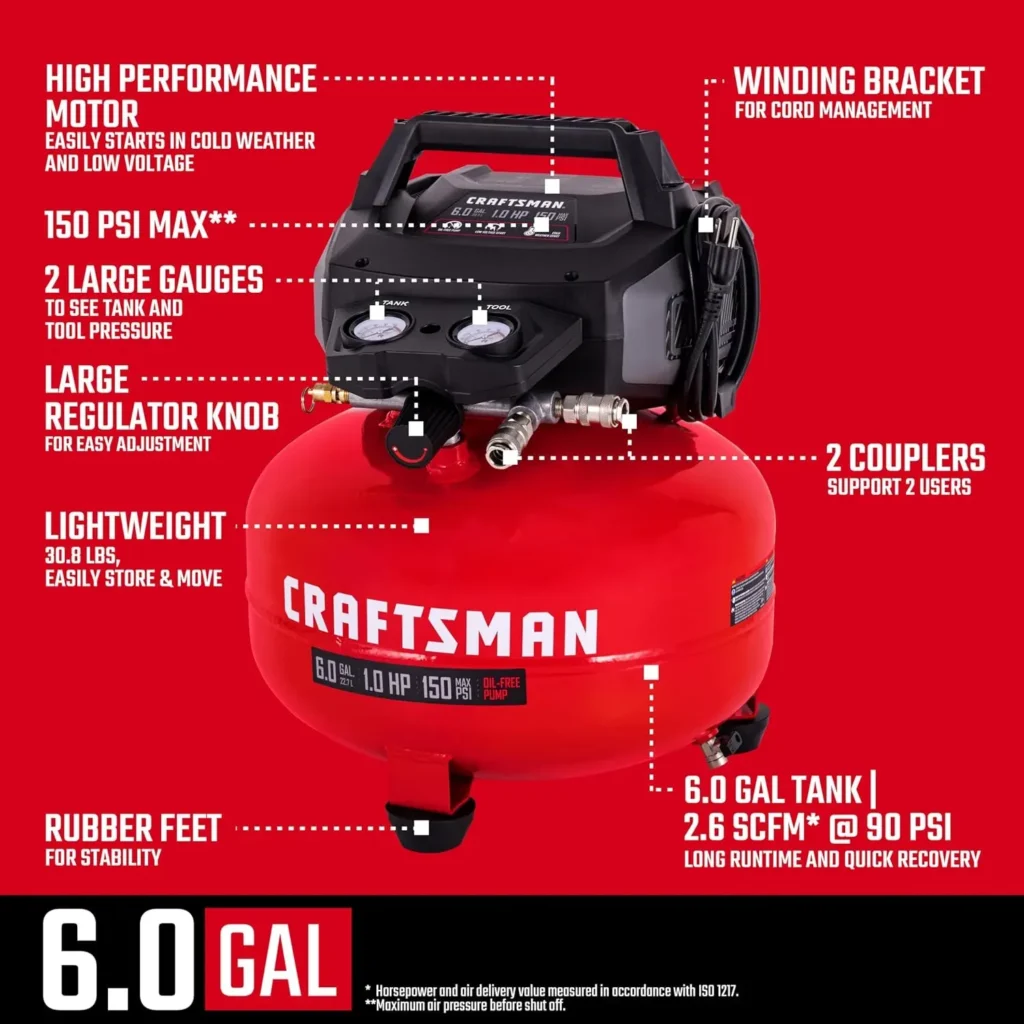

The compressor uses a straightforward control layout with an on/off control, pressure regulator, and dual pressure gauges. The regulator allows the outlet pressure to be adjusted, while the gauges provide pressure readings for the system and regulated outlet.

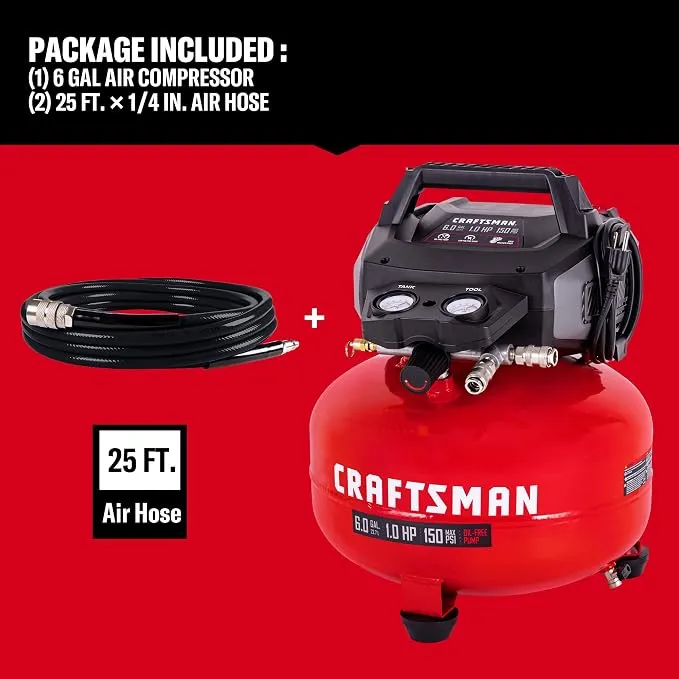

The unit is equipped with two quick-connect air couplers, allowing compatible pneumatic equipment to be connected. Published product information identifies the couplers as factory-installed and suitable for multiple applications.

The CMXECXA02106410 uses a 120V AC electric power source and a 1 HP universal motor. Published specifications list a 12-amp, single-phase electrical configuration.

Power Requirements

The electric configuration means the compressor requires access to a compatible AC power source during operation.

The CMXECXA02106410 uses an oil-free pump, so routine compressor-oil changes are not required. This reduces the amount of regular pump maintenance compared with oil-lubricated compressor designs.

Routine maintenance still includes managing moisture and checking the compressor and its connections for leaks, damage, or other problems.

The published manual specifically instructs users to drain the tank daily or after each use and provides troubleshooting guidance for air leaks, low pressure, and excessive compressor operation.

This comparison shows how the CRAFTSMAN CMXECXA02106410 compares with similar portable pancake air compressors across several key specifications.

Based on a comparison group of approximately 45 comparable portable pancake air compressors. Comparison ranges shown here are illustrative and will be generated from the CompressorDB database in production.

See how this compressor compares with similar models based on price and airflow at 90 PSI.

As shown in the chart, the CRAFTSMAN CMXECXA02106410 sits around the lower-middle portion of the price range represented by comparable portable pancake air compressors. At $299, its price falls within the comparison range of approximately $179 to $529.

Its 2.6 SCFM at 90 PSI also places it in the lower-middle portion of the airflow range, which spans approximately 2 to 3.5 SCFM among the comparison models.

Taken together, the CRAFTSMAN occupies a relatively moderate position in both price and airflow within this comparison group.

Illustrative comparison data shown for interface demonstration. Production values will be generated from the CompressorDB database.

The CRAFTSMAN CMXECXA02106410 is covered by a 1-year limited warranty. Warranty coverage is subject to the manufacturer's terms and conditions.

For more information about the warranty, including coverage details and exclusions, please consult CRAFTSMAN's official warranty policies. For warranty-related questions or service, you can also contact CRAFTSMAN Customer Support.
